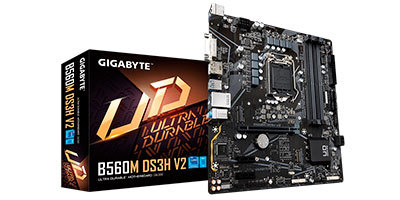

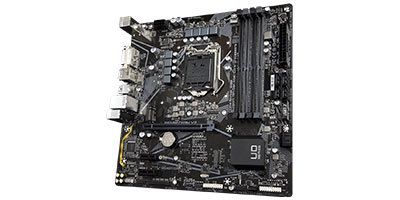

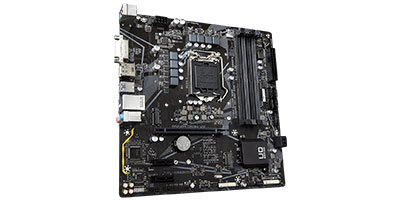

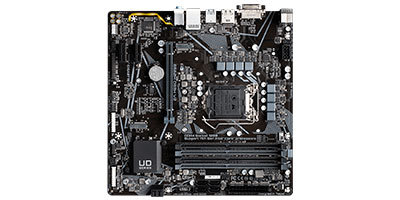

Gigabyte B560M DS3H V2

מק"ט: GB560MDS3HV2
591 ₪ 592 ₪
לא זמין במלאי

תיאור כללי

Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus Supports 11th and 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2 GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management USB 3.2 Gen1 Type-C® for Fast and Versatile Connections High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

מדיניות החזרת מוצרים

החזרת סחורה הינה בכפוף לחוק הגנת הצרכן, בתוך 14 יום ממועד הרכישה בתנאי שאריזת המוצר המקורית הוחזרה במצב תקין ללא קרעים ושלא נעשה כל שימוש במוצר.
החזרת סחורה תחויב בחמישה אחוז דמי ביטול או במאה ₪ לפי הנמוך, לעסקאות במזומן. לעסקאות אשראי יתווספו עלויות סליקה וניכיון עבור חיוב זיכוי.
לאחר 14 יום החברה לא מחויבת לקבל החזרים, ועל פי שיקול דעתה הבלעדי יינתן זיכוי בלבד לרכישה בקיזוז 23% אחוז לכל הפחות ממחיר המוצר.
מחשבים נייחים שהוזמנו והורכבו לפי מפרט בחשבונית הלקוח או מחשבים ניידים עם שדרוגים, אינם נחשבים מוצרי מדף ולא ניתן להחזירם וזאת לפי החוק בנושא זה. על הלקוח לוודא כי הרכיבים, המערכת, המחשב, המוצר או שילובם מתאימים לדרישותיו ולמטרותיו, לשווי שהוצג וכד'.

מפרט

ערכת שבבים
Intel B560
תושבת מעבד
1200
תצורת לוח
Micro ATX
סוג זכרון
DDR4
סלוטים DDR4
4
ממשק אחסון
 M.2 PCIe
ממשק אחסון
 M.2 SATA
ממשק אחסון
SATA3
חיבורי SATA3
6
חיבורי M.2 PCIe
1 + 1 (SATA and PCIe SSD support)
PCI-E x16
1
חיבור USB קדמי
 USB 3.2
חיבור USB קדמי
USB 2.0
כרטיס מסך משולב
כרטיס מסך משולב
חיבור גרפי
 DisplayPort
חיבור גרפי
 HDMI
חיבור גרפי
DVI
כרטיס קול משולב
3 port
חיבורי תקשורת
LAN 1 Gigabit
אריזה
Retail - קופסה
חריצי הרחבה
Trusted Platform Module - TPM
PCI-E x1
2
הערות
1 x parallel port header
חיבור סיריאלי COM
אופציונלי
USB Type-C
1
USB 3.2
5
USB 2.0
6

מידע

Supports 11th and 10th Gen Intel®  Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
Digital PWM Controller to deliver appropriate voltage to the CPU.
Direct 6+2Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
All-solid capacitors to improve transient response and minimize oscillation.
8-pin Solid Pin CPU Power Connector.

RGB FUSION 2.0
With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan
